FEATURES
1.Sharp stereo erect image over a wide field of view.
2.45°inclined and 360°rotatable binocular head with locked-in eyepiece.Both ocular-tube with diopter adjustment ±5dp.The interpupillary distance is between 55-75mm.
3.Three kind of 90° rotatable objectives for selection:1×/2×,1×/3×,2×/4×
4.Power supply 100V～240V
5.CE approval
Illumination:
L1:Incident reflected halogen light 12V 10W;Transmitted halogen light 12V 10W,Brightness is adjustable.
L2:Both incident and transmitted light with LED 1W,Brightness is adjustable.
Each set packed in styrofoam box and in one outer carton.
SPECIFICATION
| Model |
Eyepiece
|
Objective
|
Up & Down Mechanism
|
Base/Working Stage
|
|
DTX10-W
|
SWF10×
|
1×-2×
1×-3×
2×-4×
|
Arm curved style
|
Fan-shape plain base with Ø95mmWhite/Black Working stage
|
|
DTX-10
|
Pillar style
|
Fan-shape plain base with Ø95mmWhite/Black Working stage
|
|

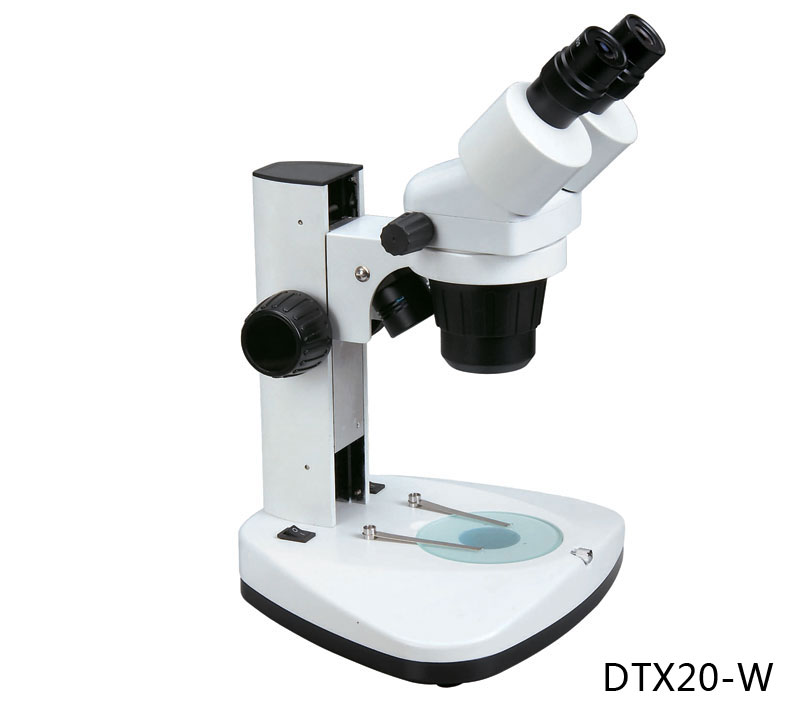

DTX20-W
|
Arm curved style
|
Fan-shape plain base with Ø95mm Frosted Glass
|
|

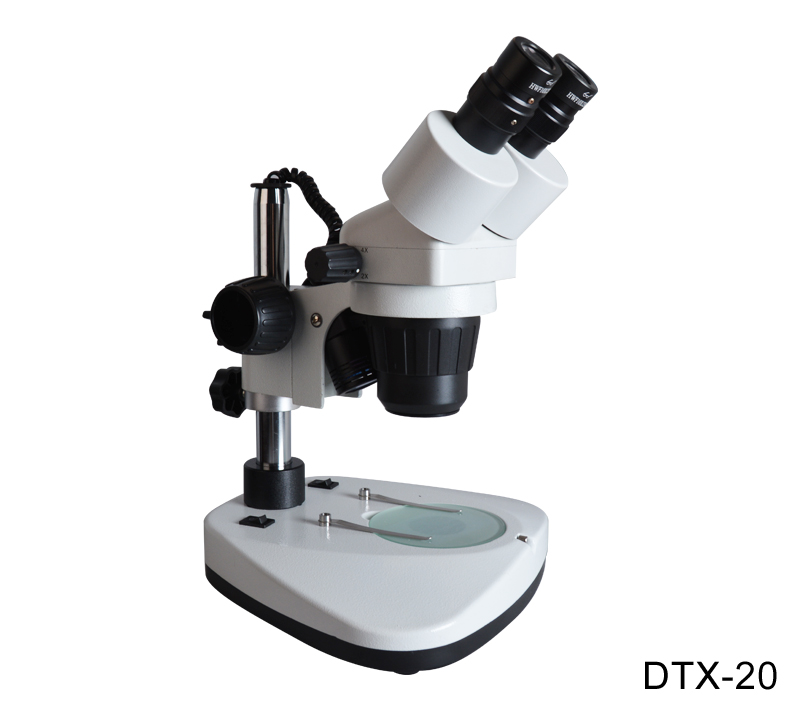

DTX-20
|
Pillar style
|
Fan-shape plain base with Ø95mm Frosted Glass
|
|
DTX-21W
|
Arm curved style
|
Fan-shape plain base with Ø95mm Frosted Glass
|
|

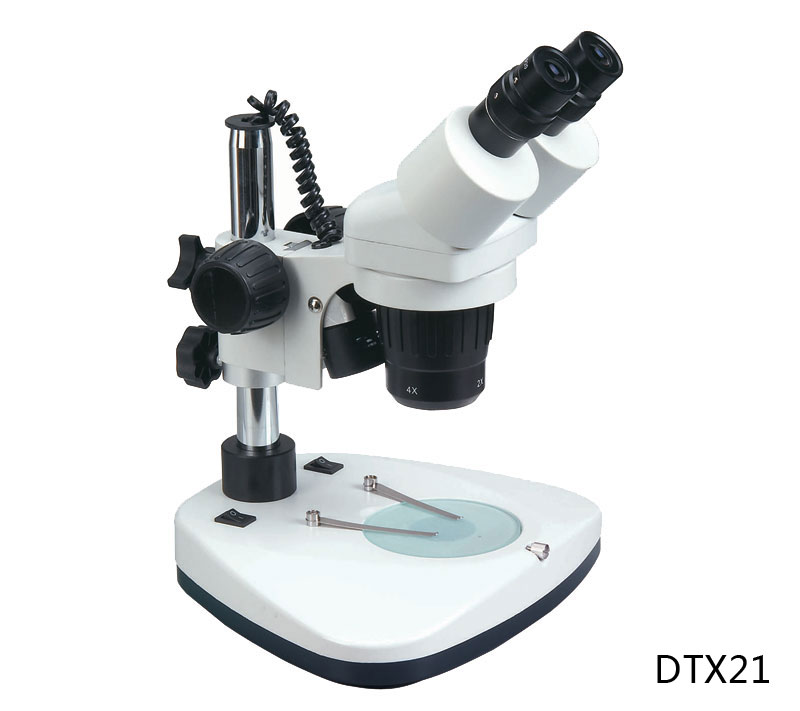

DTX-21
|
Pillar style
|
Fan-shape plain base with Ø95mm Frosted Glass
|
|
Optional accessories：WF5×、SWF10×、WF15×、WF20×Eyepiece；Ring light、Darkfield Attachment、Jewel Tweezer
|
OPTICAL DATA
Objective |
Eyepiece
|
|
WF5×
|
SWF10×
|
WF15×
|
WF20×
|
Working Distance(mm)
|
|
Magnification
Field of view
(mm)
|
Magnification
Field of view
(mm)
|
Magnification
Field of view
(mm)
|
Magnification
Field of view
(mm)
|
|
1×
|
5× 20.0
|
10× 22.0
|
15× 15.0
|
20× 10.0
|
100
|
|
2×
|
10× 10.0
|
20× 11.0
|
30× 7.5
|
40× 6.5
|
|
1×
|
5× 20.0
|
10× 22.0
|
15× 15.0
|
20× 10.0
|
100
|
|
3×
|
15× 7.0
|
15× 7.3
|
45× 5.0
|
60× 4.3
|
|
2×
|
10× 10.0
|
20× 11.0
|
30× 7.5
|
40× 6.5
|
100
|
