PRODUCT FEATURES
ZTX-S series zoom microscope adopts optical imaging system,with high resolution,fine definition and strong sense of three-dimensional,easy operation.The microscope is Widely used in semiconductor and integrated circuit board in electronic industry, agriculture, and teaching of electronics and instrumentation industry for fine precision parts inspection, assembly, repair.
SPECIFICATION LIST
|
Specification
|
Model No.
|
|
Parts
|
Specification
|

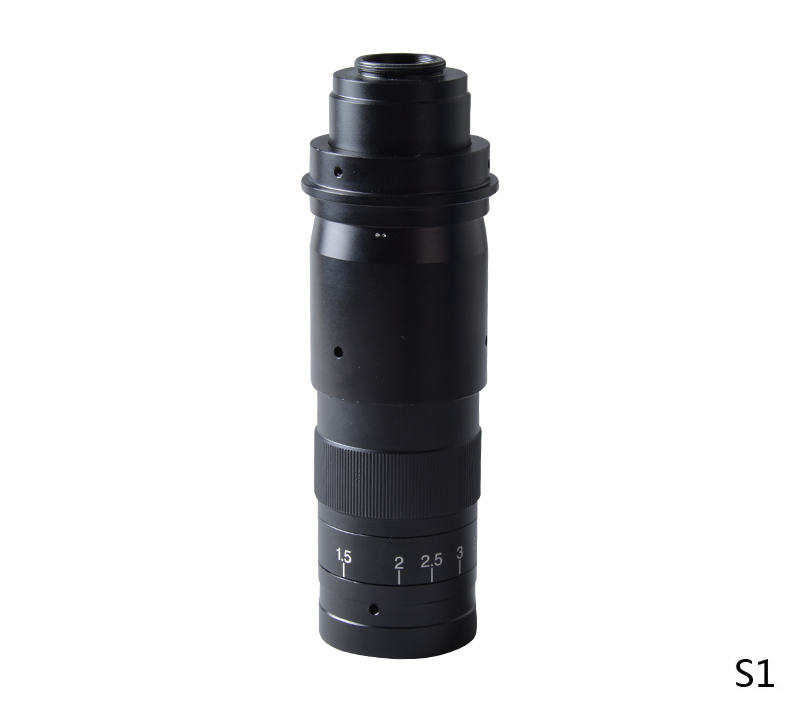

S1
|

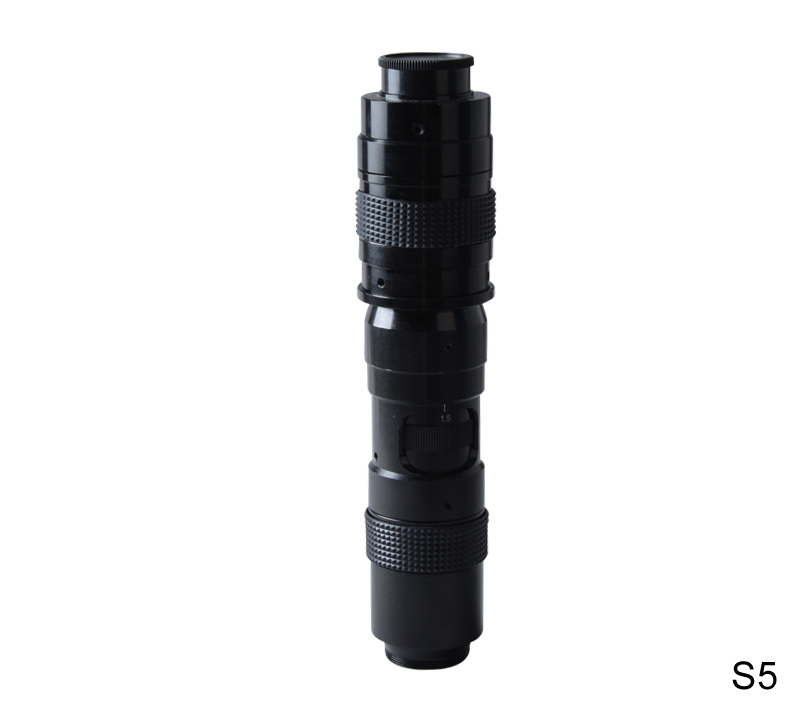

ZTX-S2-C3
|
S3
|
S5
|
|
Objective
|
1X-4X
|
|
●
|
|
|
|
0.7X-4.5X
|
●
|
|
|
|
|
0.65X-5.5X
|
|
|
●
|
|
|
0.65X-6.5X
|
|
|
|
●
|
|
Auxiliary
Objective
|
0.5X/165mm
|
○
|
○
|
○
|
○
|
|
1.5X/45mm
|
○
|
○
|
○
|
○
|
|
2X/30mm
|
○
|
○
|
○
|
○
|
|
Stand
|
C3
|
○
|
●
|
○
|
○
|
|
20
|
○
|
○
|
○
|
○
|
|
DSMP
|
○
|
○
|
○
|
○
|
|
TD-1
|
○
|
○
|
○
|
○
|
|
TD-2
|
○
|
○
|
○
|
○
|
|
Working
Distance
|
90mm
|
|
|
|
|
|
90.5mm
|
|
●
|
|
|
|
100mm
|
●
|
|
|
●
|
|
113mm
|
|
|
●
|
|
|
Photographic device
|
PH/2x
|
○
|
○
|
○
|
○
|
|
CCD Mount
|
CTV/0.5X
|
●
|
|
●
|
●
|
|
Jewel Tweezer
|
Ⅰ/Ⅱ
|
○
|
○
|
○
|
○
|
|
Darkfield Attachment
|
ASC
|
○
|
○
|
○
|
○
|
|
Incident Light
|
Bowl Shape Halogen Lamp 12V10W
|
○
|
●
|
○
|
○
|
|
Transmitted Light
|
Halogen Lamp 12V10W
|
○
|
●
|
○
|
○
|
|
LED Incident Light
|
3W
|
○
|
○
|
○
|
○
|
|
LED Transmitted Light
|
|
○
|
○
|
○
|
○
|
|
Ring light
|
RFL
|
○
|
○
|
○
|
○
|
|
Package
|
styrofoam +cardboard box
|
●
|
●
|
●
|
●
|
●Standard ○ Optional
PS：CCD/CMOS Model & Size
| Model |
aspect ratio(mm)
|
Vidicon tube diameter
(mm)
|
target surface area
|
|
diagonal line(mm)
|
height(mm)
|
width(mm)
|
conversion coefficient
|
|
1/2”
|
4：3
|
12.700
|
8.00
|
6.400
|
4.800
|
5.408
|
|
1/2.5”
|
10.160
|
7.182
|
5.760
|
4.290
|
6.024
|
|
1/3”
|
8.467
|
6.00
|
4.800
|
3.600
|
7.211
|
|
1/4”
|
6.350
|
4.500
|
3.600
|
2.700
|
9.615
|
