ZTX-10/20 Series stereo microscope |
|
|
| Product name : ZTX-10/20 Series stereo microscope |
| Item : ZTX-10/20 |
| Details : |
FEATURES
- Sharp stereo erect image over a wide field of view.
- 45°inclined and 360°rotatable binocular head with locked-in eyepiece,The left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is between 55-75mm.
- Three kind of 90°rotatable objective for selection:1×/2×,1×/3×,2×/4×
- ZTX-10/ZTX-20 series supplied with pillar style stand;ZTX-10-C series supplied with fan base and pillar stand,ZTX-20-W series supplied with arm curved style stand.
- CE approval.
- Power supply 110V/60Hz or 220V/50Hz.
- Each set packed in styrofoam box and in an inner box.Two or Four sets in one outer carton.The outer measurement is ZTX-10/20:85×35×40cm ZTX-20-W:50×37×48cm.
- A wide range of accessories for selection.
Illumination:
L1:Incident reflected halogen light 12V 10W;Transmitted halogen light 12V 10W,Brightness is adjustable.
L2:Both incident and transmitted light with LED 1W,Brightness is adjustable.
SPECIFICATION
|
Model
|
Eyepiece
|
Objective
|
Working Stage
|
Illumination
|
|

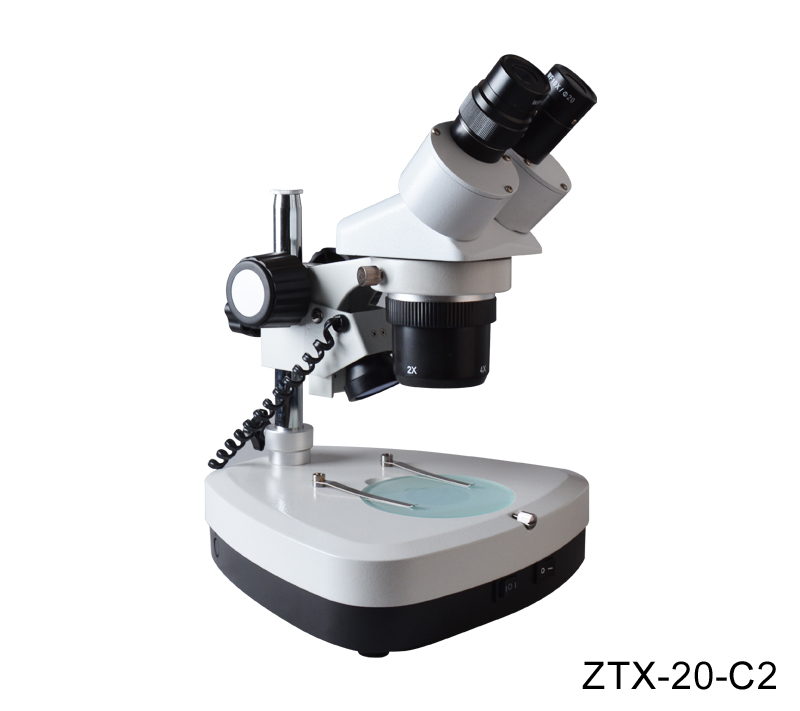

ZTX-20-C2
|
WF10×
|
1×-2×
1×-3×
2×-4×
|
Frosted glass
|
LED illumination
|
|
ZTX-20
|
WF10×
|
Frosted glass
|
Halogen Lamp illumination
|
|

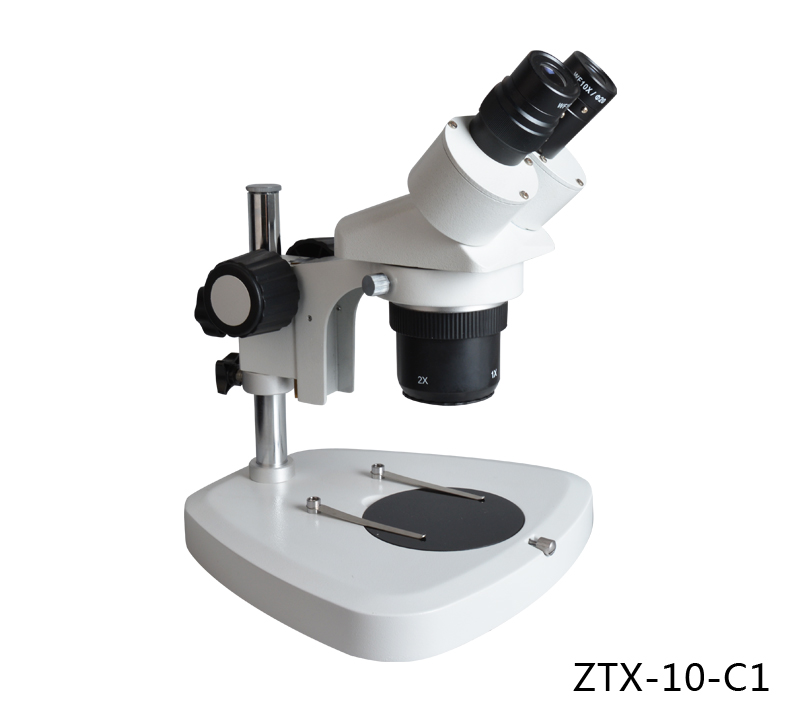

ZTX-10-C1
|
WF10×
|
White/black
|
Natural illumination
|
|
ZTX-10
|
WF10×
|
White/black
|
Natural illumination
|
|
Optional accessories：0.5×、0.75x、1.5×、2× Auxiliary Objective;WF5×、WF10×、WF15x、WF20× Eyepiece;Ring light、Darkfield Attachment、.Jewel Tweezer
|
OPTICAL DATA
Eyepiece |
Objective
|
Auxiliary Objective
|
|
0.5×
|
0.75×
|
1.5×
|
2.0×
|
|
Objective
|
Field of view
(mm)
|
Working Distance
|
Field of view
(mm)
|
Working Distance
|
Field of view
(mm)
|
Working Distance
|
Field of view
(mm)
|
Working Distance
|
Field of view
(mm)
|
Working Distance
|
|
WF5×
|
1×
|
20
|
109
|
37.5
|
120
|
24
|
75
|
14
|
40
|
11
|
25
|
|
2×
|
10
|
99
|
19
|
120
|
12
|
75
|
7
|
40
|
5.5
|
25
|
|
3×
|
7
|
84
|
12.5
|
120
|
8
|
75
|
4.5
|
40
|
3.5
|
25
|
|
4×
|
5
|
81
|
19
|
120
|
6
|
75
|
3.5
|
40
|
2.8
|
25
|
|
WF10×
|
1×
|
20
|
109
|
37.5
|
120
|
25
|
75
|
14
|
40
|
11
|
25
|
|
2×
|
10
|
99
|
19
|
120
|
12
|
75
|
7
|
40
|
5.5
|
25
|
|
3×
|
7
|
84
|
12.5
|
120
|
8
|
75
|
4.5
|
40
|
3.5
|
25
|
|
4×
|
5
|
81
|
19
|
120
|
6
|
75
|
3.5
|
40
|
3
|
25
|
|
WF15×
|
1×
|
15
|
109
|
30
|
120
|
18
|
75
|
10
|
40
|
8
|
25
|
|
2×
|
7.5
|
99
|
15
|
120
|
9
|
75
|
5
|
40
|
4
|
25
|
|
3×
|
5
|
84
|
9.5
|
120
|
6
|
75
|
3.5
|
40
|
3
|
25
|
|
4×
|
3.8
|
81
|
7
|
120
|
4.5
|
75
|
2.8
|
40
|
2
|
25
|
|
WF20×
|
1×
|
10
|
109
|
19
|
120
|
12
|
75
|
7
|
40
|
5.5
|
25
|
|
2×
|
5
|
99
|
10
|
120
|
6
|
75
|
3.5
|
40
|
2.5
|
25
|
|
3×
|
3.5
|
84
|
6.2
|
120
|
4
|
75
|
2.4
|
40
|
2
|
25
|
|
4×
|
2.5
|
81
|
4.7
|
120
|
3
|
75
|
2
|
40
|
1.5
|
25
|
|
|
 |
