FEATURES
1.Sharp stereo erect image over a wide field of view.
2. 45°inclined and 360°rotatable binocular head with locked-in eyepiece.The left ocular-tube with diopter adjustment±5dp,The interpupillary distance is between 55-75mm. 3. Three kind of 90°rotatable objective for selection:1×/2×,1×/3×,2×/4×
4. XTX-5A/5B/5C series supplied with pillar style stand:XTX-5A-W,XTX-5C-W series supplied with arm curved style stand.
5. CE approval.
6. Power supply 110V/60HZ or 220V/50HZ.
7. Each set packed in styrofoam box and in an inner box. Four sets in one outer carton.
8. A wide range of accessories for selection
Optional accessories:
1.Eyepiece:WF5×,WF10×,WF15×,WF20×
2.Φ95mm White/Black Working stage
3.Illumination:1.Incandescent lamp 12V10W 2.Halogen lamp 12V10W 3.High brightness LED lamp.
4.Digital Camera
5.Darkfield Attachment and Jewel Tweezer for XTX-5C.
SPECIFICATION
|
Model
|
Eyepiece
|
Objective
|
Working Stage
|
Illumination
|
|
XTX-5A
|
WF10×
|
Rotated
1×-2×
1×-3×
2×-4×
|
φ60 White/black
|
Natural illumination
|
|

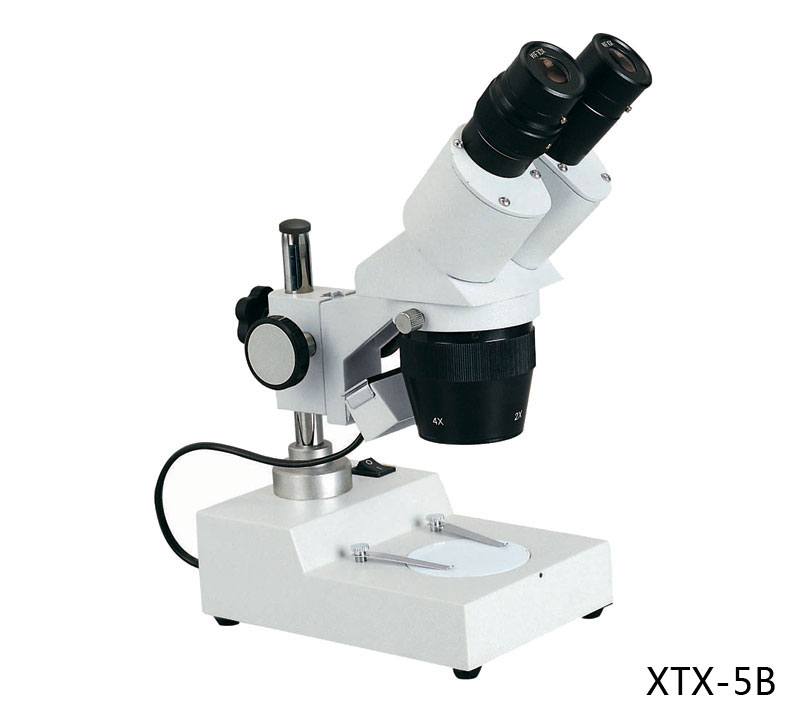

XTX-5B
|
WF10×
|
φ60 White/black
|
Incident illumination
|
|

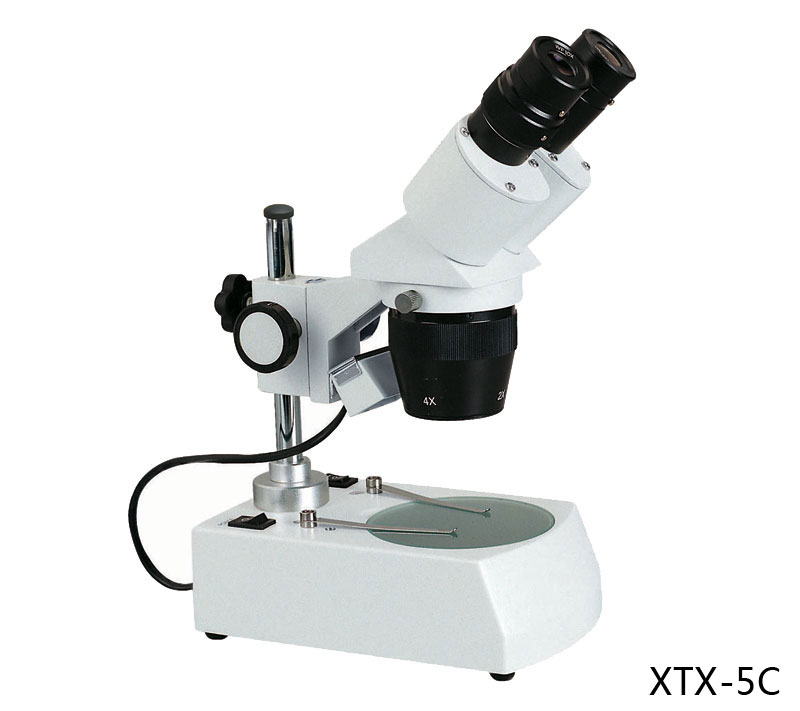

XTX-5C
|
WF10×
|
φ95 Frosted glass
|
Incident illumination & transmitted illumination
|
|

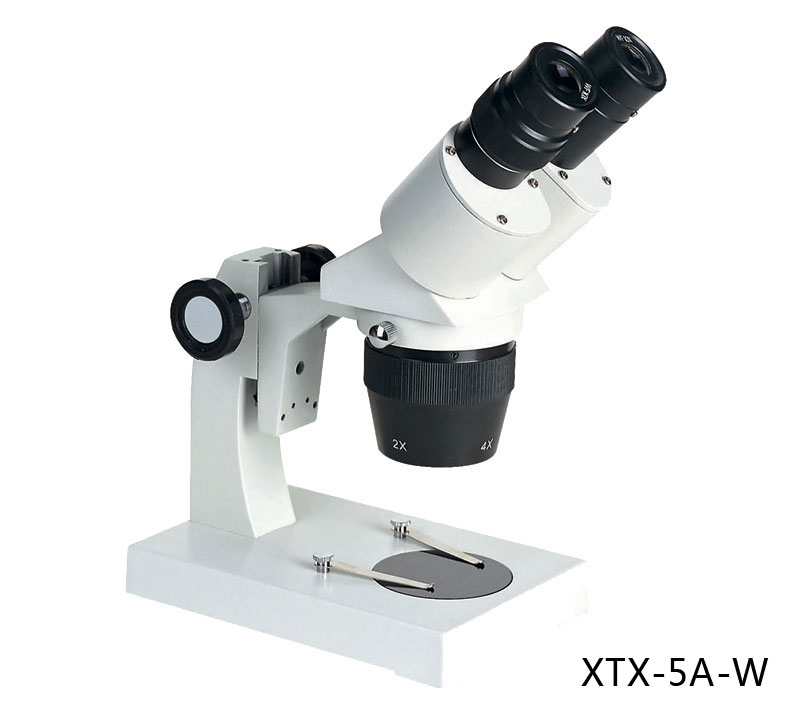

XTX-5A-W
|
WF10×
|
φ60 White/black
|
Natural illumination
|
|

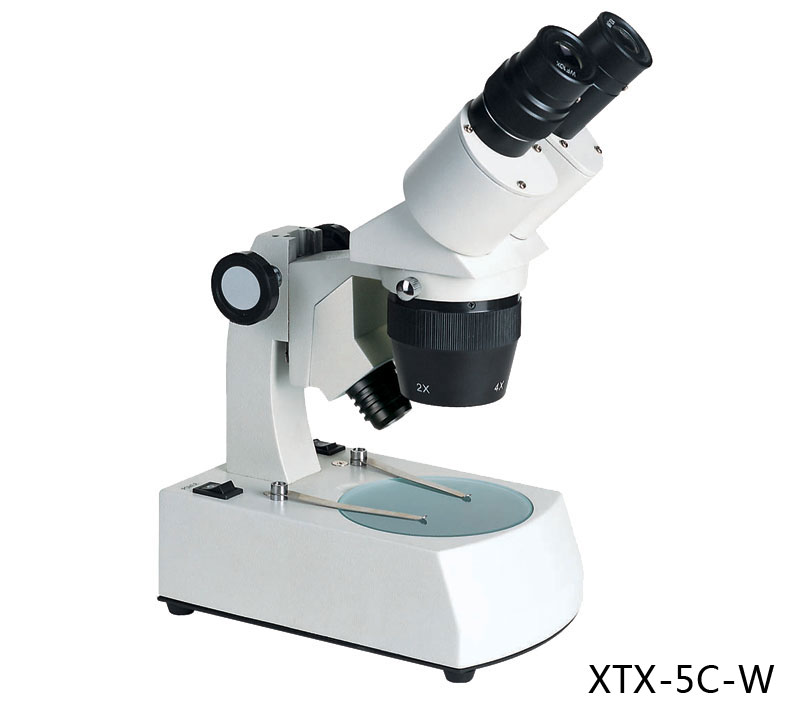

XTX-5C-W
|
WF10×
|
φ95 Frosted glass
|
Incident illumination & transmitted illumination
|
OPTICAL DATA
|
Objective
|
Eyepiece
|
Working Distance
|
|
5×
|
10×
|
15×
|
20×
|
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
|
1×
|
5×
|
20.0mm
|
10×
|
20.0mm
|
15×
|
15.0mm
|
20×
|
10.0mm
|
76mm
|
|
2×
|
10×
|
10.0mm
|
20×
|
10.0mm
|
30×
|
7.5mm
|
40×
|
6.5mm
|
|
1×
|
5×
|
20.0mm
|
10×
|
20.0mm
|
15×
|
15.0mm
|
20×
|
10.0mm
|
76mm
|
|
3×
|
15×
|
7.0mm
|
30×
|
6.7mm
|
45×
|
5.0mm
|
60×
|
4.3mm
|
|
2×
|
10×
|
10.0mm
|
20×
|
10.0mm
|
30×
|
7.5mm
|
4×
|
6.5mm
|
76mm
|
|
4×
|
20×
|
5.0mm
|
40×
|
5.0mm
|
60×
|
3.7mm
|
80×
|
3.2mm
|
