FEATURES
- Sharp stereo erect image over a wide field of view.
- Upright binocular head with locked-in eyepiece.The left ocular-tube with diopter adjustment±5dp.The interpupillary distance is between 55-75mm.
- V-shape inserted style objective with locked-in device ensuring easy replacement.
- Pillar style stand.
- CE approval.
- Power supply 110V/60HZ or 220V/50HZ.
- Each set packed in styrofoam box and in an inner box.Four sets in one outer carton.
- A wide range of accessories for selection
Optional accessories:
Eyepiece:WF5×,WF10×,WF15×,WF20×
Objective:1×,2×,3×,4×,6×
Ø95mm White/Black Working stage
Incandescent lamp 12V10W
Digital Camera
Darkfield Attachment and Jewel Tweezer for XTX-1C.
Wooden case or Aluminum carrying case
SPECIFICATION
|
Model
|
Eyepiece
|
Objective
|
Working Stage
|
Illumination
|
|

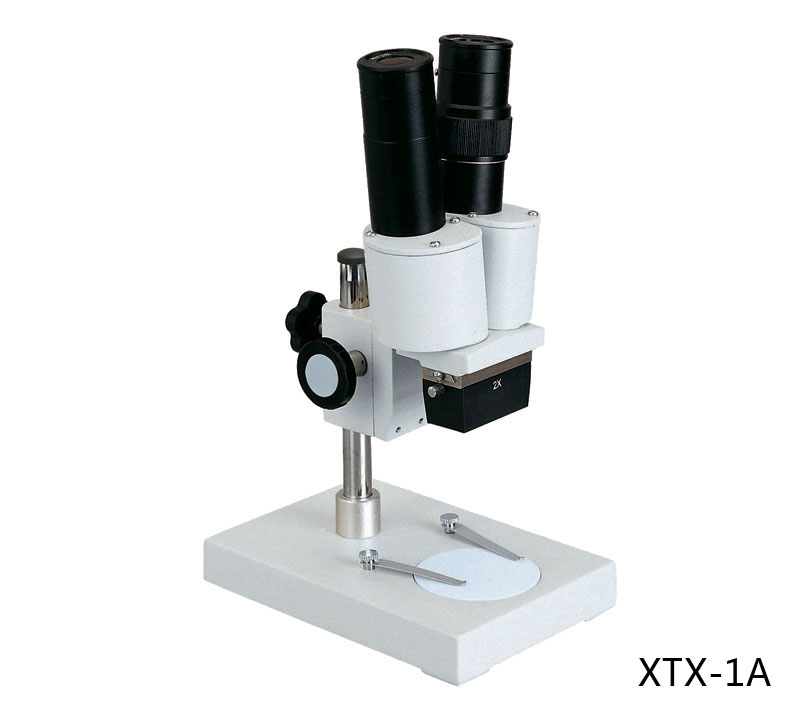

XTX-1A
|
WF10×
|
2×
|
φ60 White/black
|
Natural illumination
|
|

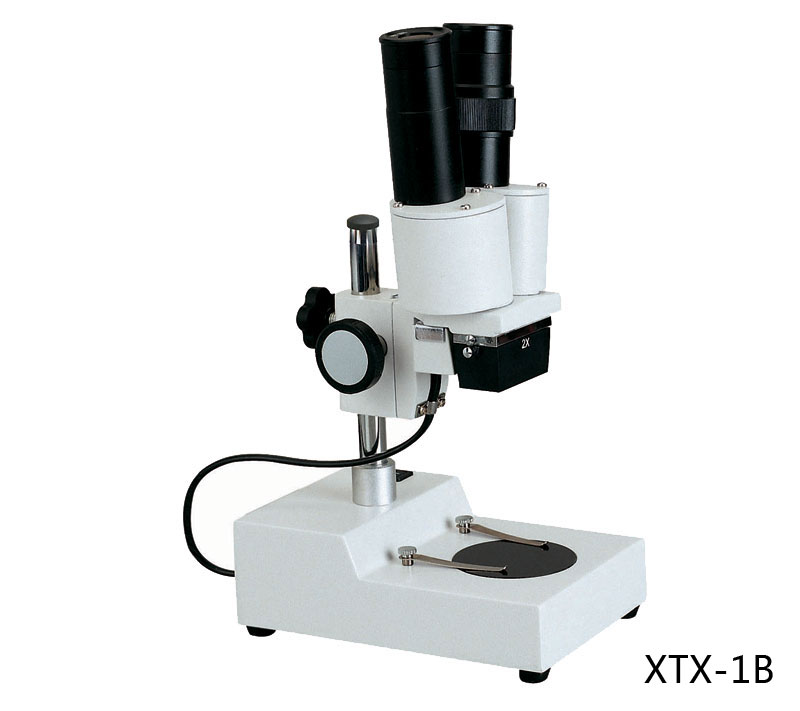

XTX-1B
|
WF10×
|
2×
|
φ60 White/black
|
Incident illumination
|
|

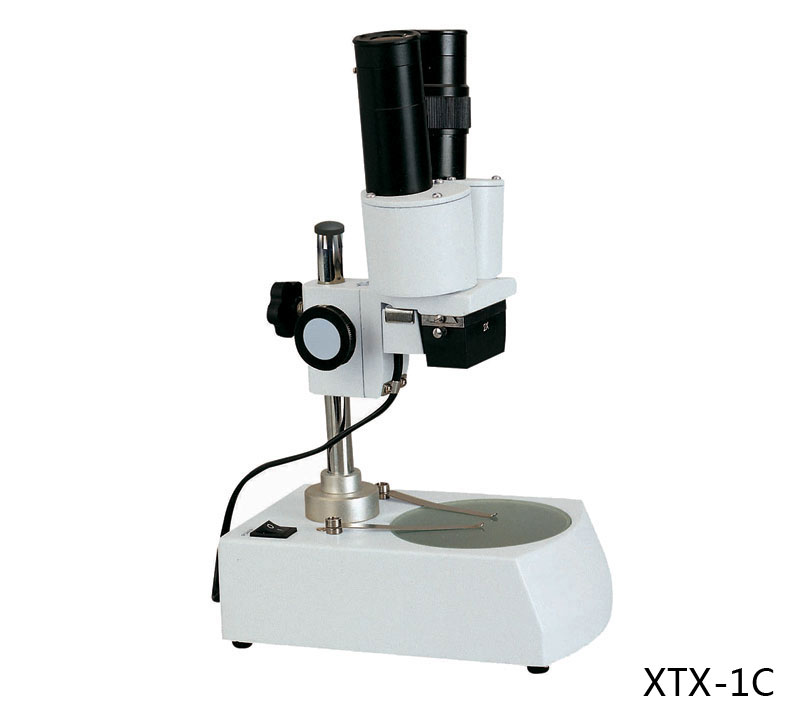

XTX-1C
|
WF10×
|
2×
|
φ95 Frosted glass
|
Incident illumination & transmitted illumination
|
OPTICAL DATA
|
Objective
|
Eyepiece
|
Working Distance
|
|
5×
|
10×
|
15×
|
20×
|
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
Magnification
|
Field of View
|
|
1×
|
5×
|
20.0mm
|
10×
|
20.0mm
|
15×
|
15.0mm
|
20×
|
10.0mm
|
57mm
|
|
2×
|
10×
|
10.0mm
|
20×
|
10.0mm
|
30×
|
7.5mm
|
40×
|
6.5mm
|
80mm
|
|
3×
|
15×
|
7.0mm
|
30×
|
6.7mm
|
45×
|
5.0mm
|
60×
|
4.3mm
|
61mm
|
|
4×
|
20×
|
5.0mm
|
40×
|
5.0mm
|
60×
|
3.7mm
|
80×
|
3.2mm
|
57mm
|
|
6×
|
30×
|
4.0mm
|
60×
|
3.3mm
|
90×
|
2.5mm
|
120×
|
2.1mm
|
66mm
|
