PRODUCT FEATURES
DSM0745 series zoom microscope adopts streamline integrated mechanical design,Easy operation,long working distance,clear resolved image,enclosure integrated. The microscope is used extensively world medical research and health care,biology and botany research, and agriculture,as well as in electronic component manufacturing.Specially suited for LED,PCB inspection,pressing plating and electronic component inspection.
OUTFIT
|
Viewing head
|
inclined at 45º
|
|
Zoom ratio
|
1：6.4
|
|
Eyepiece
|
WF10X/20mm
|
|
Objective
|
0.7x-4.5x
|
|
Magnification
|
7x-45x
|
|
Interpupillary distance
|
55-75mm
|
|
Working distance
|
100mm
|
|
Working Stage
|
φ95mm Frosted glass & White/Black Working stage
|
|
Height of Pillar
|
300mm
|
|
travel distance
|
100mm
|
|
Diameter of Scope Holder
|
φ76mm
|
OPTICAL DATA
Eyepiece |
Standard spec
|
Auxiliary Objective
|
|
0.5X
|
1.5X
|
2X
|
|
Working Distance
100mm
|
Working Distance
165mm
|
Working Distance
45mm
|
Working Distance
30mm
|
|
Magnification
|
Field of view mm
|
Magnification
|
Field of view mm
|
Magnification
|
Field of view mm
|
Magnification
|
Field of view mm
|
|
WF10X/
20mm
|
7X
|
28.6
|
3.5X
|
57.1
|
10.5X
|
19
|
14X
|
14.3
|
|
45X
|
4.4
|
22.5X
|
8.9
|
67.5X
|
3
|
90X
|
2.2
|
|
WF15X/
15mm
|
10.5X
|
21.1
|
5.25X
|
42.8
|
15.75X
|
14.3
|
21X
|
10.7
|
|
67.5X
|
3.3
|
33.75X
|
6.7
|
101.25X
|
2.2
|
135X
|
1.7
|
|
WF20X/
10mm
|
14X
|
14.3
|
7X
|
28.6
|
21X
|
9.5
|
28X
|
7.1
|
|
90X
|
2.2
|
45X
|
4.4
|
135X
|
1.5
|
180X
|
1.1
|
SPECIFICATION LIST
Specification |
Model
|
|
Parts
|
Specification
|

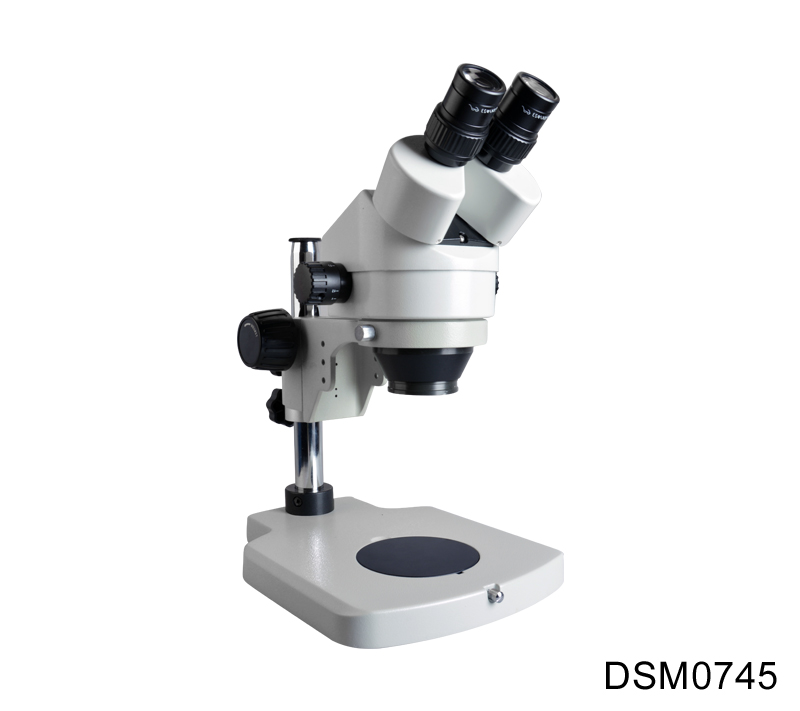

DSM0745
|
DSM0475-3
|

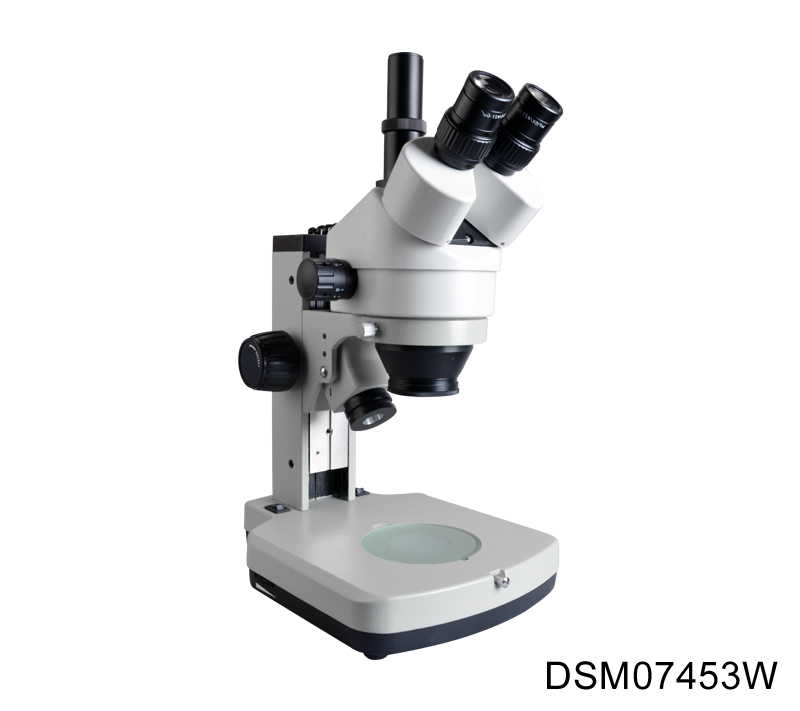

DSM0745W
|
DSM07453W
|

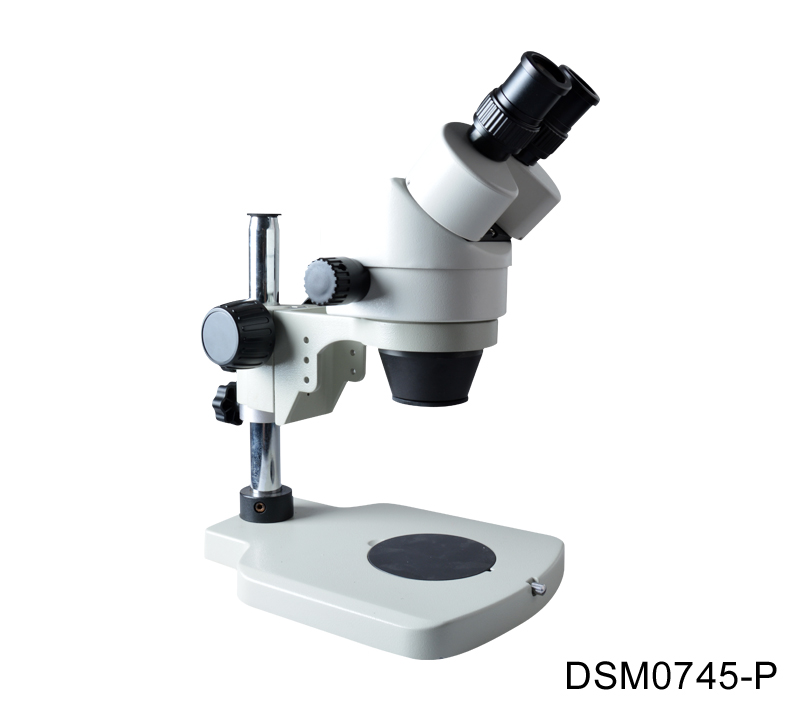

DSM0745P
|
|
Eyepiece
|
WF10X20mm
|
●
|
●
|
●
|
●
|
●
|
|
WF15X15mm
|
○
|
○
|
○
|
○
|
○
|
|
WF20X10mm
|
○
|
○
|
○
|
○
|
○
|
|
Binocular
|
DSM0745
|
●
|
|
●
|
|
●
|
|
Trinocular
|
DSM0745-3
|
|
●
|
|
●
|
○
|
|
Auxiliary
Objective
|
0.5X/165mm
|
○
|
○
|
○
|
○
|
○
|
|
1.5X/45mm
|
○
|
○
|
○
|
○
|
○
|
|
2X/30mm
|
○
|
○
|
○
|
○
|
○
|
|
Stand
|
DSM
|
●
|
●
|
|
|
|
|
DSMW
|
|
|
●
|
●
|
|
|
TD-1
|
○
|
○
|
○
|
○
|
○
|
|
TD-2
|
○
|
○
|
○
|
○
|
○
|
|
DSMP
|
|
|
|
|
●
|
|
Photographic device
|
PH
|
|
○
|
|
○
|
|
|
CCD Mount
|
CTV
|
|
○
|
|
○
|
○
|
|
Jewel Tweezer
|
Ⅰ/Ⅱ
|
○
|
○
|
○
|
○
|
○
|
|
Darkfield
Attachment
|
ASC
|
○
|
○
|
○
|
○
|
|
|
Incident Light
|
Bowl Shape Halogen Lamp
12V10W
|
●
|
●
|
|
|
|
|
Transmitted
Light
|
Halogen Lamp
12V10W
|
●
|
●
|
|
|
|
|
LED Incident Light
|
1W
|
|
|
●
|
●
|
|
|
LED
Transmitted Light
|
1W
|
|
|
●
|
●
|
|
|
Ring light
|
RFL
|
○
|
|
○
|
|
○
|
|
Package
|
styrofoam +cardboard box
|
●
|
●
|
●
|
●
|
●
|
● Standard ○ Optional
